ANGEL-200 | Dental Microscope

Description

Description:

Extraordinary Optical System

High-quality lenses and advanced imaging technolog improve imaging quality and guarantee the efficiency and precision of the surgeon's operation during surgery.

A new revolutionary microscope from ALLTION. Multi-functional handles, maximum aesthetics, improved optics with magnification up to 19.9x – these are just the tip of the iceberg of innovations introduced by this model. It serves as the base version of the ALLTION ANGEL 200

OPTICS

Motorized smooth zoom with a ratio of 1:6.5

Total magnification 1.7x→19.8x, apochromatic optics

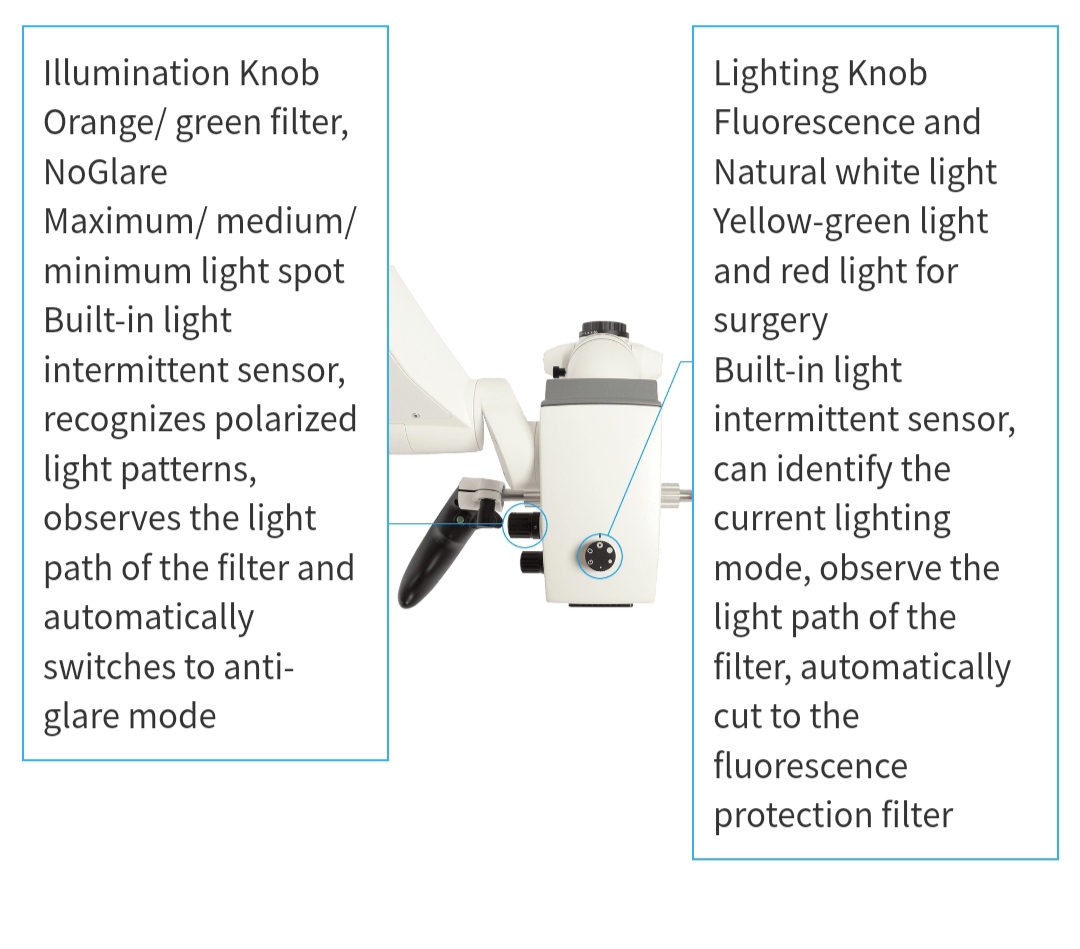

Anti-glare mode (polarizing filter )

Dual iris (depth of field system) controlled by built-in switch

LIGHTING

LED lighting from CREE

Long life (>50,000 hours), low power consumption, stable at higher brightness than halogen or xenon lamps. Brightness: >100,000 lux

3 light spot sizes: large, medium and small Orange and green filters

• Magnification Steps: 6 steps

• Binocular Head: 0-180° Inclinable Binocular Head with Knob of Pulilary Distance Adjustment &12.5X/18mm Eyepiece

• Fora: Flexible Optics Rotating Assembly Including 90° Binocular Extender, Pendulum Rotation Device and beam splitter 2:8

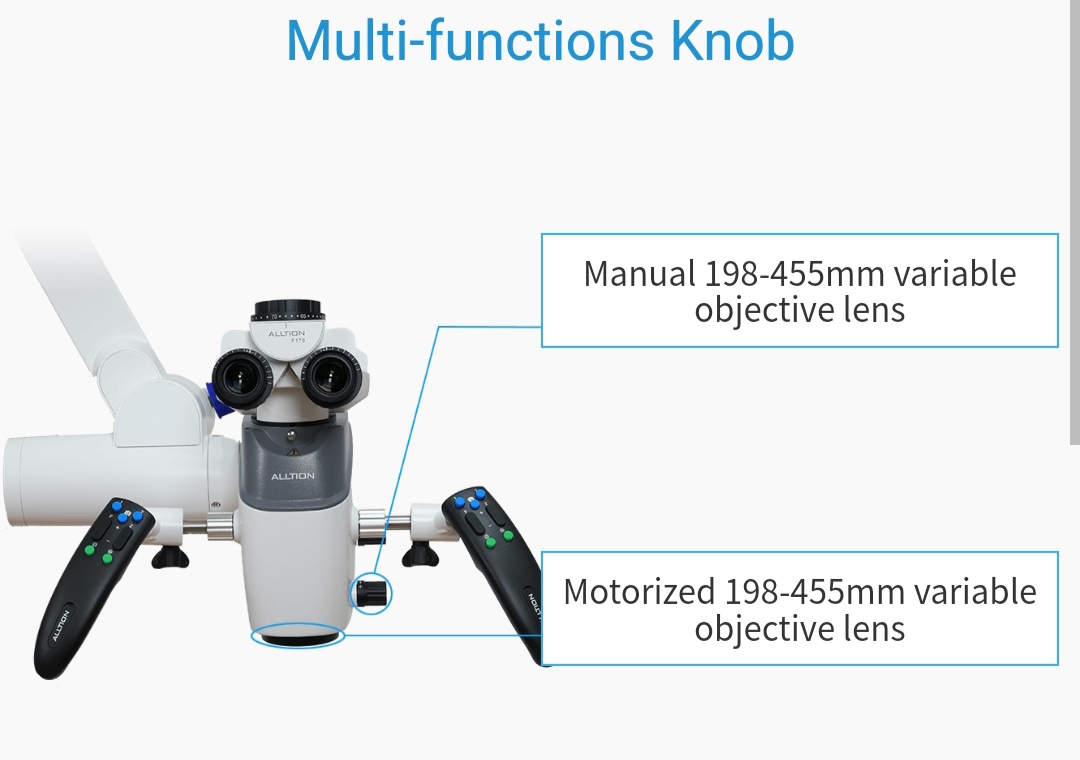

• Objective Lens: 198-455mm Variable Objective Lens

• Illumination: LED

• Filter: Green, Orange

• Augmented Visulization: Fluorescence Mode and Built-in Depth of Field Strenthen Devicd

• Second Arm: 650mm Standard Arm

• Connecting Arm Type: 120° Connecting Arm

• Built-in Camera: ALL-CAM4

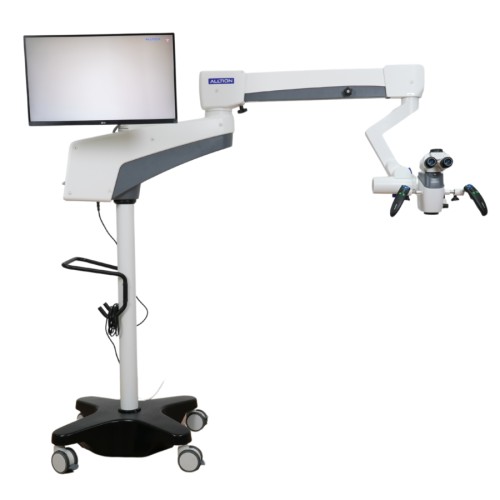

• Stand Type: Mobile Floor Stand
