Endo Smart+ | Endo Motor

Description

- Features:

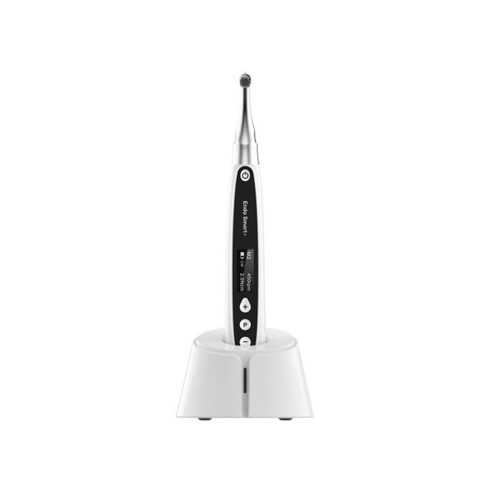

Endo Smart Plus is a high performance cordless and brushless endodontic motor for use with the Woodpex V Apex Locator . By connecting to the locator, the position of the file in the canal can be monitored during the procedure and functions such as automatic apical reversal can be activated.

The Endo Smart+ motor has a precise angle of rotation and allows automatic reversal, which helps prevent file fractures, resulting in higher preparation efficiency.

• It is equipped with a brushless motor, which means increased performance, precision and durability.

• Compatible with most premium files.

• It offers a reciprocating function .

• Adjustable range from 20º to 400º .

• It incorporates a small head for better visibility .

• OLED display with relevant information (speed, torque and program).

• Recharge the battery in complete safety, thanks to wireless charging.

• Automatic torque calibration.

• 9 storable programs.

• Adjustable torque: 0.4 Ncm to 5.0 Ncm.

• Adjustable speed: 100 to 1200 rpm.

• Handpiece warranty: 24 months

- Endo Smart Plus 6:1 contra-angle:

• Contra angle 6:1 .

• Super mini , allowing a clearer field of action.

• Able to rotate 360º .

• Adjustable angle, allowing easy access to different teeth.

• Compatible with ENDO RADAR Plus, Endo Smart Plus and Motopex.

• Sterilisable in autoclavable.

• Contra-angle warranty: 12 months.

- Primary technical parameters:

• Lithium battery in motor handpiece: 3.7V /2000mAh

• Power adapter (Model: ADS-6AM-06N 05050/UE08WCP- 050100SPA)

• Input: ~100V-240V 50Hz/60Hz 0.4A Max

• Output: DC5V/1A

• Torque rang: 0.4Ncm-5.0Ncm（4mNm ~ 50mNm）

• Speed rang: 100rpm~1200rpm

• Wireless charging

• Frequency range: 112-205KHz

• Maximum RF output power of the product: 9.46dBuA/m@3m
