Description

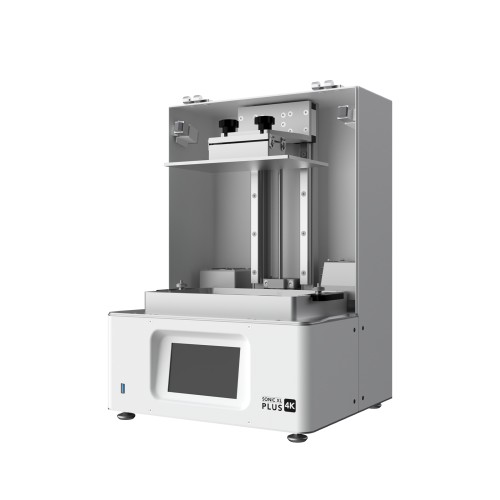

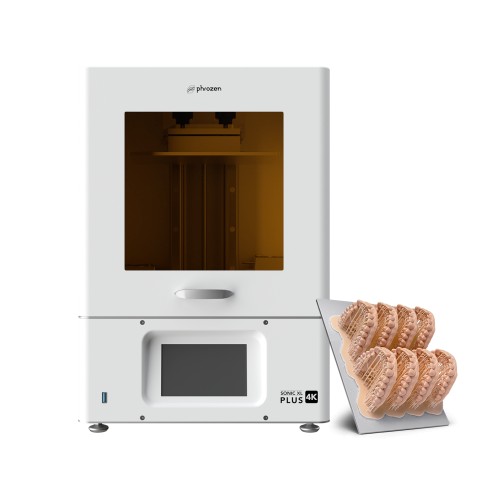

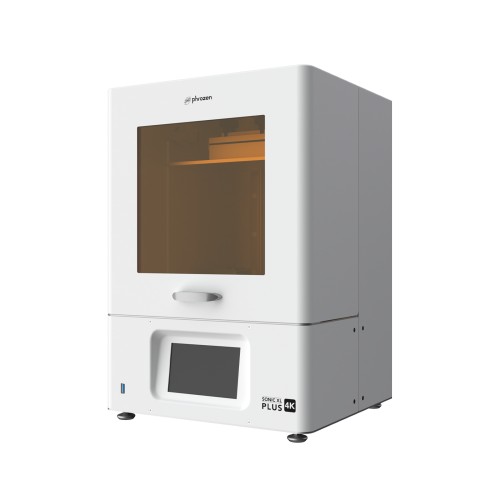

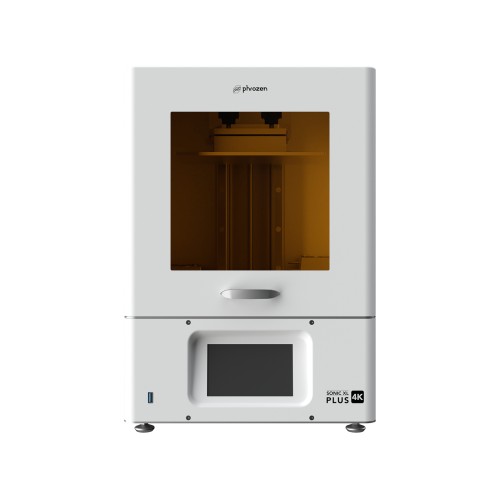

  • Sonic XL 4K PLUS

Released in 2023, Sonic XL 4K Plus features a new mainboard system and substantial enhancement in build quality, providing more robust operation to withstand the demands of large batch high-precision dental 3D printing.

• Print up to 8 full-arch models in ±35 minutes
• 52 micron XY resolution
• New mainboard system & Improved heating technology
• Built-in air purifier
• Wide materials compatibility with validated resin settings

Specs:

Technology: LCD
LCD Specification: 9.3” 4K Mono-LCD
Light Source: 405nm ParaLED® 3.0 Module
Z-Axis: Dual Linear Rails (Ball Screws)
Printer Size: 33 x 29 x 47 cm
Printer Weight: 17.2 kg
Printing Volume: 19.66 x 12.03 x 20 cm
XY Resolution: 52 µm
Layer Thickness: 0.01-0.30 mm
Max. Printing Speed: Up to 90mm/hr

System: Phrozen OS
Operation: 5in Touch Panel
Slicer Software: Phrozen DS Slicer
Connectivity: USB | Ethernet | WiFi
Compatible File Format: .PRZ
Power Requirement: AC100-240V : 50-60HZ
Power Supply: 180W
Cooling System: SIngle Cooling Fan
Other System: Air Purifier | Heater

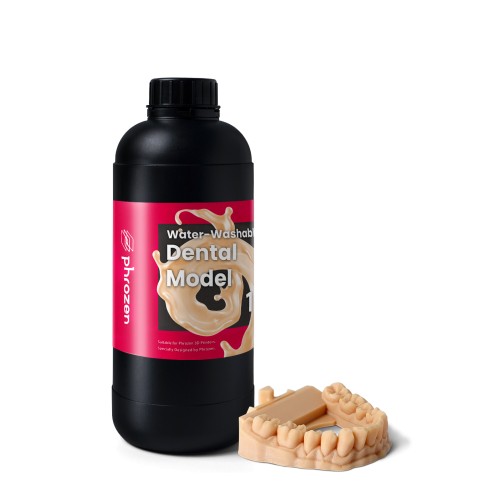

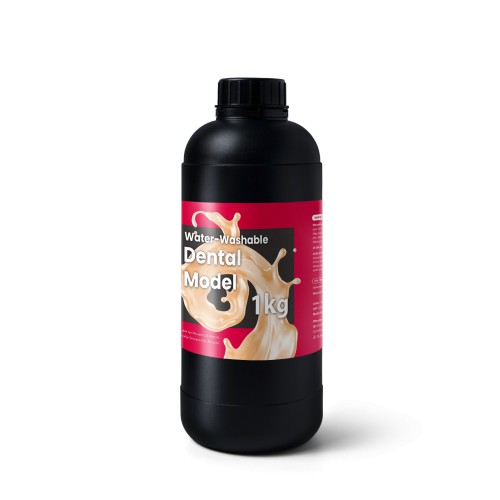

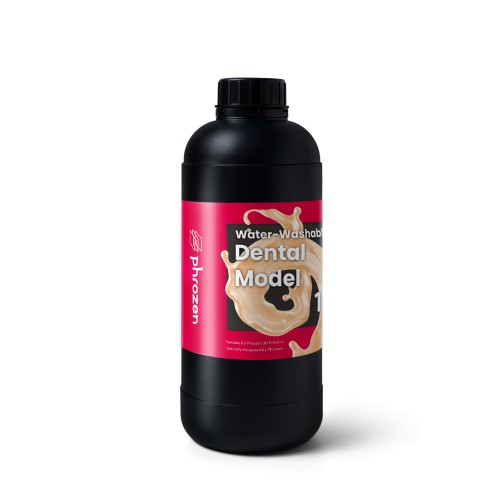

  • Water-Washable Dental Model Resin

Phrozen Resin Water-Washable Dental Model in the color Beige is specifically developed to rapidly produce highly accurate dental models. The material delivers a high level of post-curing accuracy with minimum shrinks. Its water-washable formulation makes it easy and safe to handle even in office environments, providing comfort for both patients and practitioners. With more than 90% of variation with ±0.05mm tolerance, Water-Washable Dental Model Resin shows an incredibly high accuracy when scanned and compared with the actual STL file, making it reliable for detailed diagnostic models.

very precise - is accurate and dimensionally stable water-washable - you do not need to wash your prints with IPA anymore, just rinse them with water and you're good to go low viscosity and odor - easy to print and post-process ideal for printing dental models, diagnostic models, implant analog models, crowns, and bridges models with removable dies

Technical Specification

Volume: 1 KG
Viscosity: 60-100 cps
Density: 1.1 g/cm3
Surface hardness: 76 Shore D
Flexural modulus: 1542 MPa
Flexural strength: 65.7 MPa

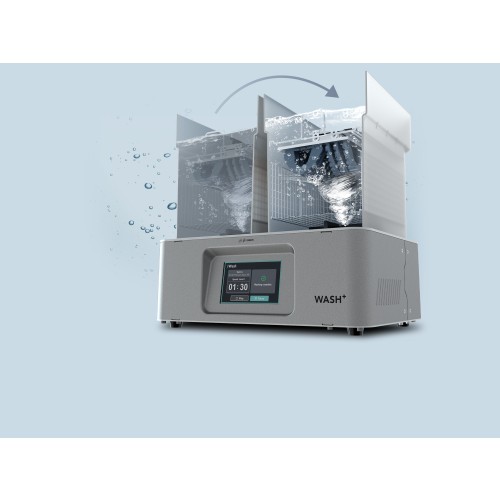

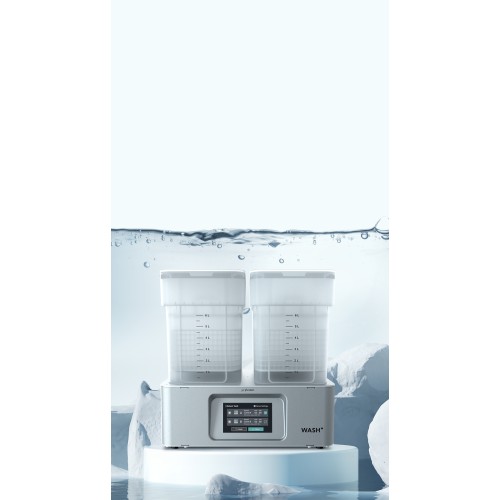

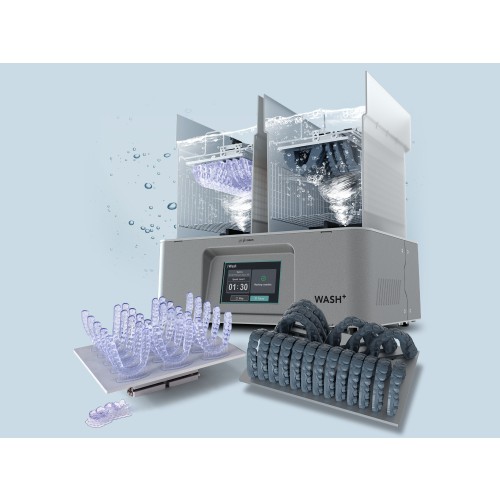

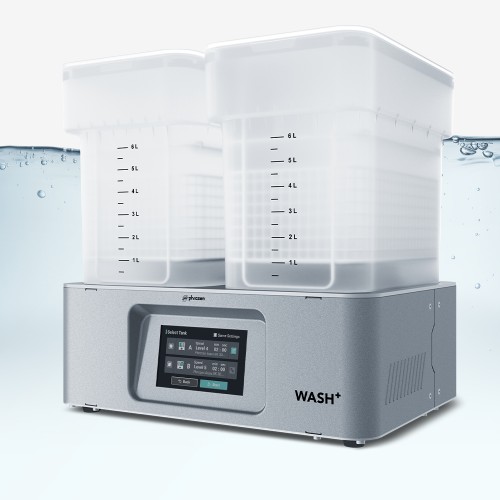

  • Wash+

Wash+ is a versatile cleaning solution tailored for your dental 3D printing workflow. Whether you like to perform a two-stage wash process, create a separate FDA & non-FDA cleaning operation, or employ both tanks to double your output, Wash+ is built to easily adapt to all your needs. Pair Wash+ with your Phrozen Dental 3D Printers and simplify your end-to-end dental 3D printing workflow today!
3D Printer Compatibility

Specs:

Washing Tank Size: L18.5 x W25 x H25 cm
Wash Volume: L12.5 x W20 x H10 cm (9.3” building plate)
Liquid Capacity: Up to 7L per tank
User Control: 5” touch screen
Solvent Compatibility: Isopropyl alcohol (IPA) 99%, Alcohol 95%
Product Dimension: L39 x W28.5 x H40 cm
Machine Weight: 9 kg
Rated Power: Max 48 W
Input Voltage: 24V DC : 2A
Other System: Capacity up to 200 washing profiles

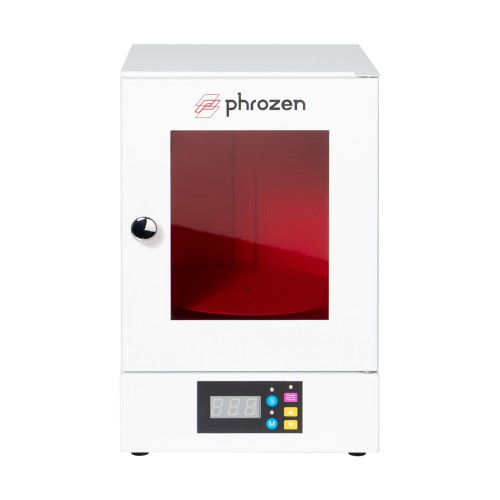

  • Cure – Professional UV Curing Unit

Professional UV curing unit with a large enough size for all models printed with Phrozen LCD 5.5" printers. Easy to use with 3 levels of LED curing for fast curing

Characteristics

Size enough for models printed with Phrozen 5.5" LCD.
Fast UV-LED Cure: Using 365nm, 385nm, 405nm UV-LEDs (150W total) to cure inner, middle, and outer layers of the model.
360-degree curing: The plate rotates 360 degrees to cure the entire model and leave no hidden areas.
Stable, quality power supply without overvoltages.
Cooling System: Dual fan system that makes the system stable for long-term use.
Easy to use: Phrozen Cure comes with a digital control system. One click and you will control everything you need.
Usable worldwide: Compatible with 100-240V 50-60Hz

Additional information

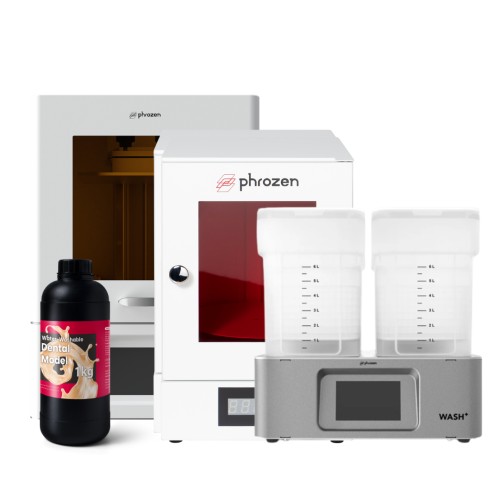

Packaging

Backage contains:

  • Sonic XL 4K PLUS
  • Water-Washable Dental Model Resin 1 kg
  • Wash+
  • Cure – Professional UV Curing Unit
