E (Endo) Tips

Description

Description :

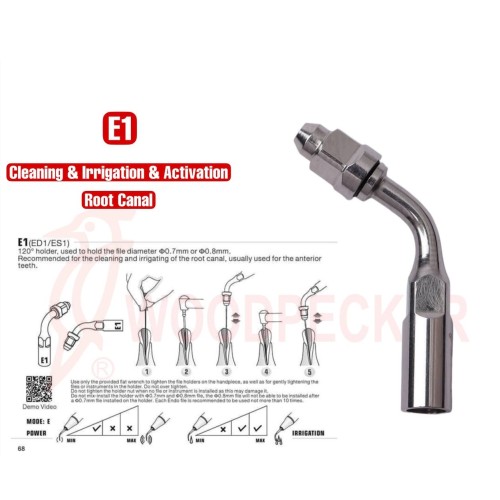

E1 :
120° holder, used to hold the file diameter Ф0.7mm or Ф0.8mm.
Recommended for the cleaning and irrigating of the root canal, usually used for the anterior teeth.
Use only the provided flat wrench to tighten the file holders on the handpiece, as well as for gently tightening the files or instruments in the holder.
Do not over tighten , Do not tighten the holder nut when no file or instrument is installed as this may damage it.
Do not mix-install the holder with Ф0.7mm and Ф0.8mm file , the Ф0.8mm file will not be able to be installed after a Ф0.7mm file installed on the holder. Each Endo file is recommended to be used not more than 10 times.

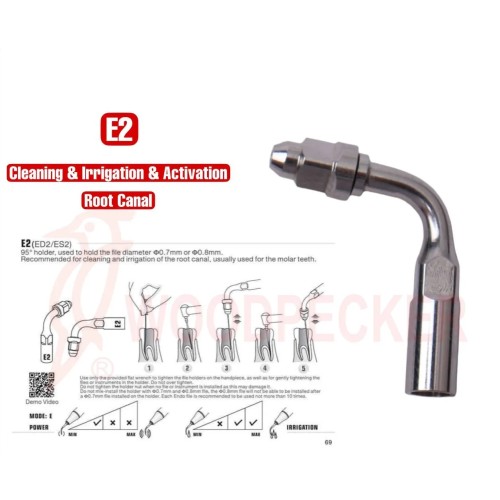

E2 :
95° holder, used to hold the file diameter Ф0.7mm or Ф0.8mm.
Recommended for cleaning and irrigation of the root canal , usually used for the molar teeth.
Use only the provided flat wrench to tighten the file holders on the handpiece, as well as for gently tightening the files or instruments in the holder. Do not over tighten.
Do not tighten the holder nut when no file or instrument is installed as this may damage it.
Do not mix-install the holder with Ф0.7mm and Ф0.8mm file, the Ф0.8mm file will not be able to be installed after a Ф0.7mm file installed on the holder. Each Endo file is recommended to be used not more than 10
times

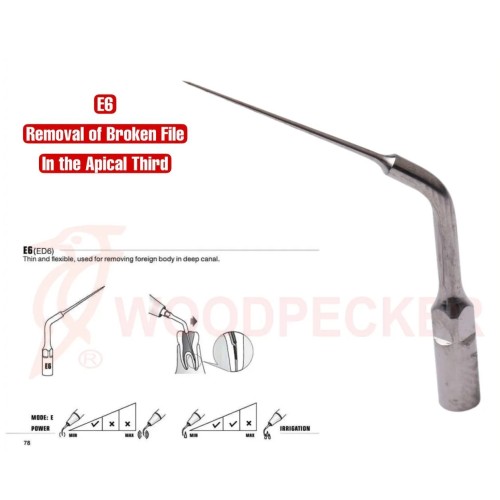

E6 :

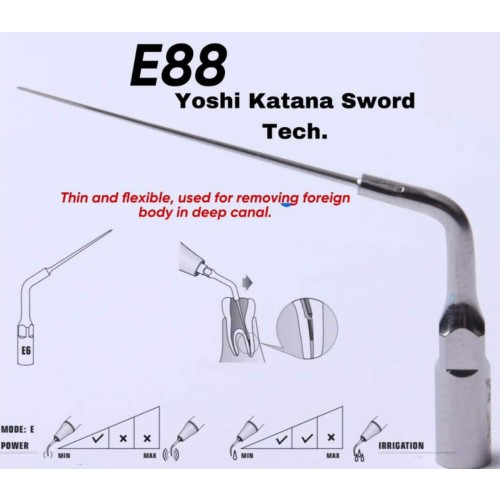

Thin and flexible, used for removing foreign body in deep canal.

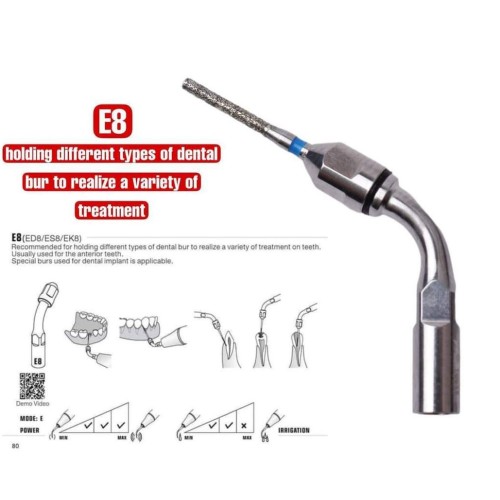

E8 :
Recommended for holding different types of dental bur to realize a variety of treatment on teeth. Usually used for the anterior teeth.
Special burs used for dental implant is applicable

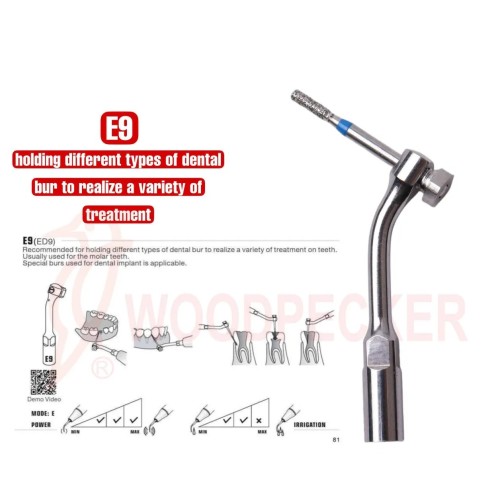

E9:
Recommended for holding different types of dental bur to realize a variety of treatment on teeth. Usually used for the molar teeth.
Special burs used for dental implant is applicable.
E10D:
Volume of water: Ensure the cooling water reach the end of the tip
Functional Description: For subgingival calculus probing, subgingival scaling and root planing
Applicable area: All teeth buccal and lingual site
Operation method:The tip is parallel to the long axis of the tooth. and ensure the 2 mm right or left tip niddle site adapt the tooth surface. Move
the tip front and back.

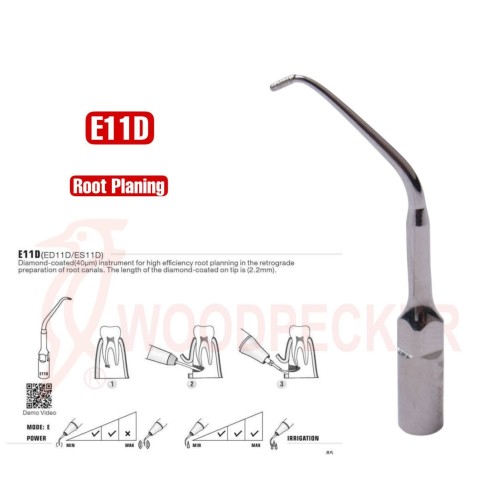

E11D :
Diamond-coated(40μm) instrument for high efficiency root planning in the retrograde preparation of root canals. The length of the diamond-coated
on tip is (2.2mm)

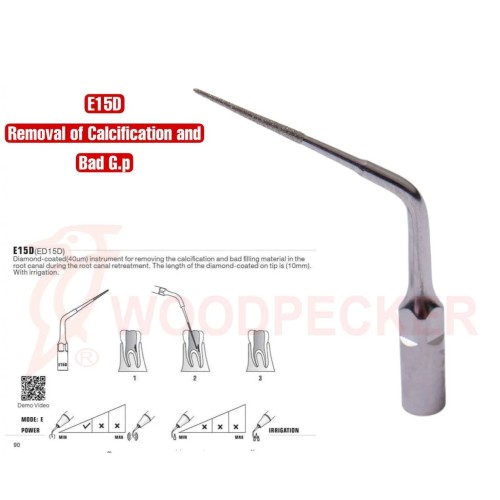

E15D :
Diamond-coated(40um) instrument for removing the calcification and bad filling material in the root canal during the root canal retreatment.
The length of the diamond-coated on tip is (10mm). With irrigation.

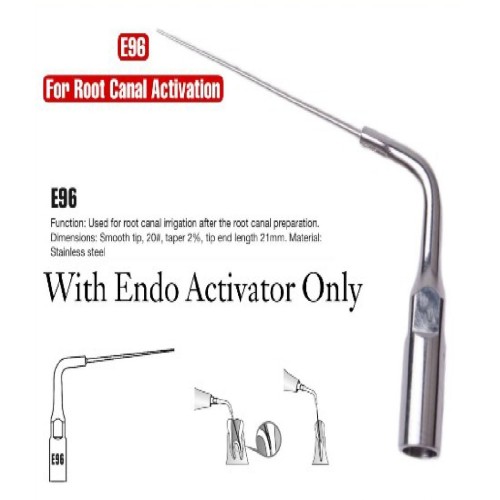

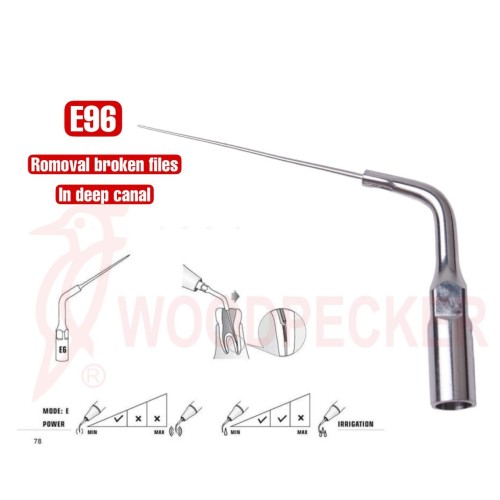

E96 :
Function: Used for root canal irrigation after the root canal preparation.
Dimensions: Smooth tip, 20#, taper 2%, tip end length 21mm.
Material: Stainless steel

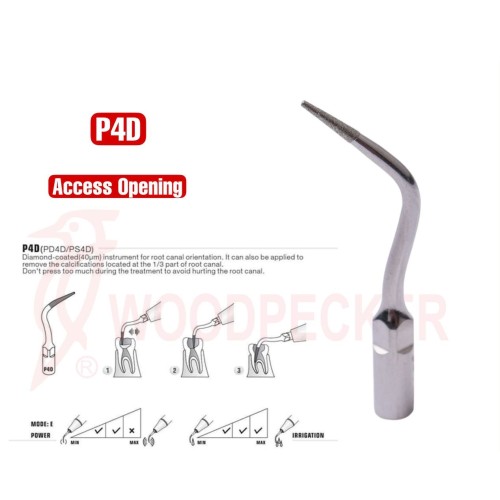

P4D:
Diamond-coated(40μm) instrument for root canal orientation. It can also be applied to remove the calcifications located at the 1/3 part of root canal.
Don't press too much during the treatment to avoid hurting the root canal.

E15:

removes linings from the root canal and broken instruments from the third coronary area, with irrigation

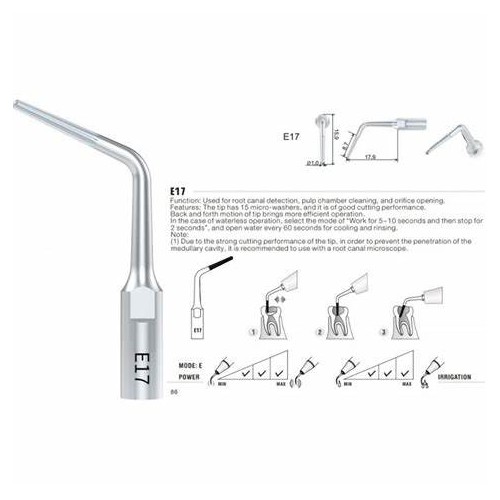

E17:

Access opening

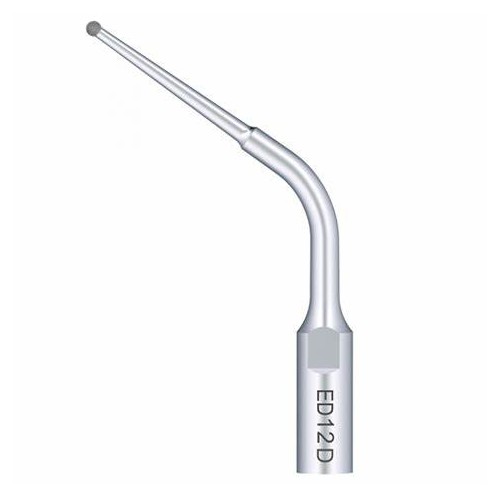

E12D:

Exposing root canal orifice
