Note :

Shipping and installation are FREE of charge , in addition to training on how to use the device .



Description :

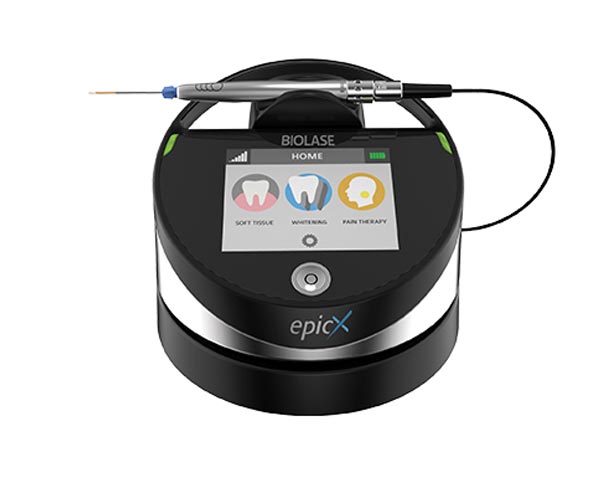

IMG_4834.jpegThe Ultimate in Aerosol-Free Dentistry
- Epic X is the all-in-one everyday diode laser. This aerosol-free best-seller dental laser features new software technology and a new cordless foot pedal, among other notable innovations. With quick surgical capabilities, numerous hygiene procedures (where permitted), plus modes for Pain Therapy and Whitening, Epic X is a highly versatile, productive instrument.

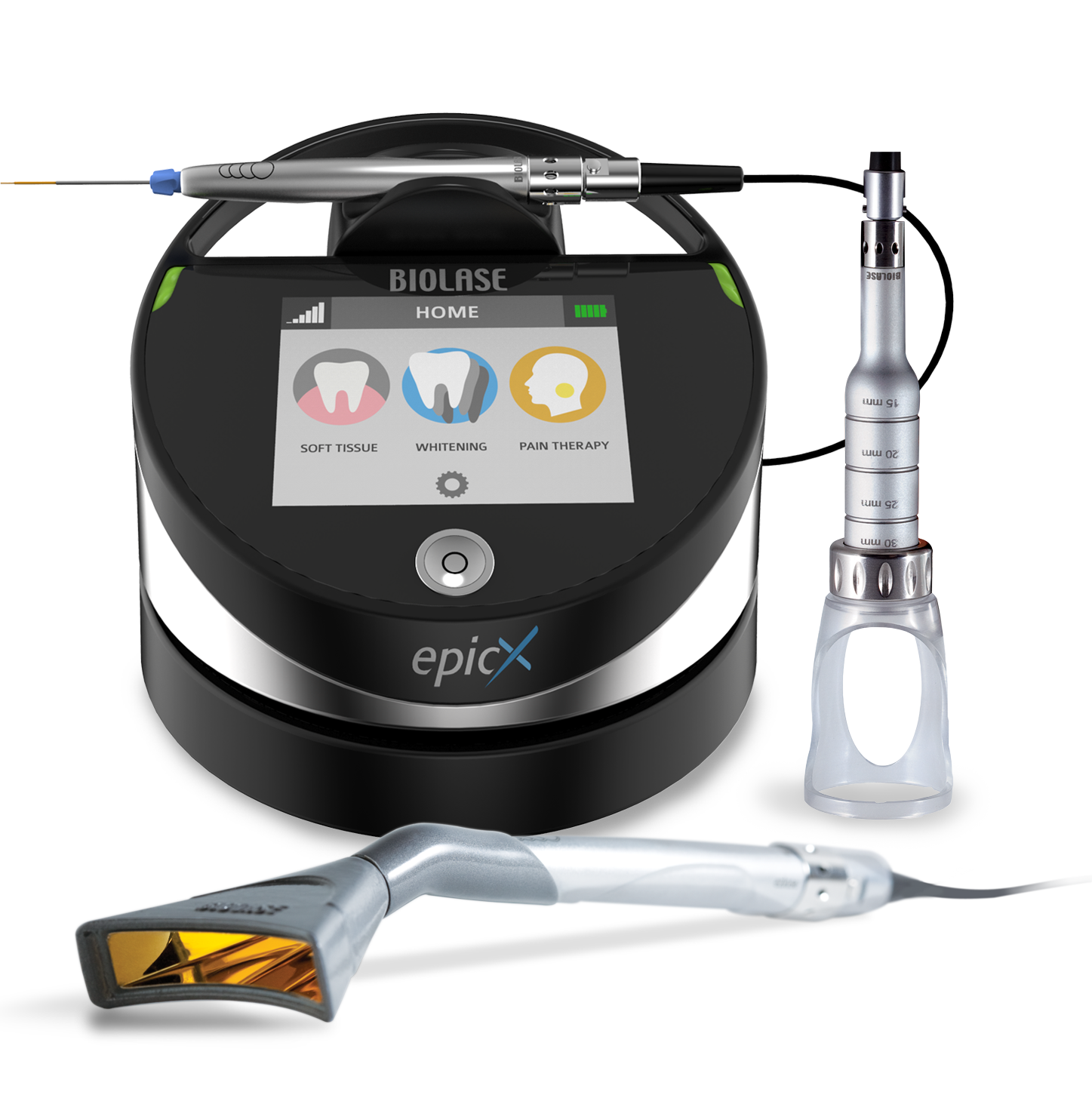

IMG_4835.pngSurgery, Pain Relief and Whitening At Your Fingertips

- Epic X features three distinct treatment modes and 30 clinical indications, greatly expanding the utility of your Epic X laser. You have access to Surgery, Pain Relief and Whitening procedures from a single device, ensuring quick payback and long-term ROI.



IMG_4837.pngCreate Whiter Smiles Faster

- In-office teeth whitening remains in high demand and can be a steady, reliable source of revenue for practices. With affordable per-patient costs and dramatic results in as little as 20 minutes of chair time, your practice can begin benefiting from laser whitening today.



IMG_4838.pngProvide Pain Relief Faster

- Epic X is cleared for temporary relief of minor pain, including pain associated with TMJ or other thermomandibular disorders. And with patented handpiece attachments to simplify the procedure, it’s a snap to provide pain relief faster.

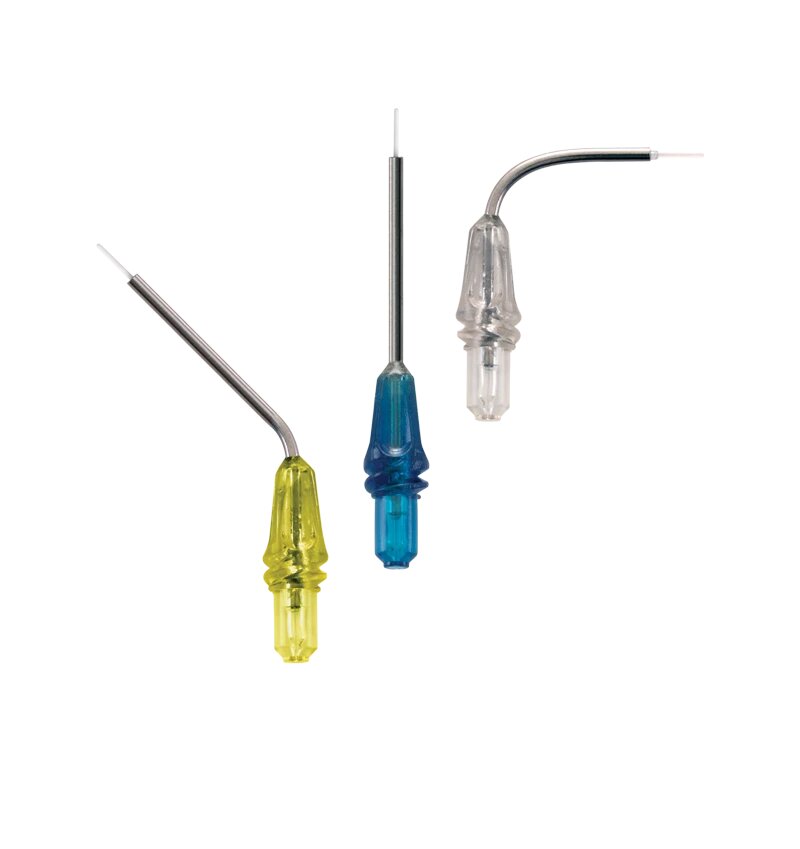

IMG_4839.jpegStart and Finish Laser Surgeries Faster

- Epic X marked the debut of BIOLASE’s patented pre-initiated tip to complement our standard non-initiated tips. What does this mean to you? You and your team can get to work faster without having to manually initiate or re-initiate tips.



Videos :

Epic X Laser Biopsy ( BIOLASE ) : https://vimeo.com/269657249

Epic X Laser Troughing ( Dr. Russel Morrow ) :https://vimeo.com/813343223

Epic X Herpetic Lesion ( BIOLASE ) : https://vimeo.com/269657277



Technical Specifications :

- Operating Voltage : 100V – 240V at 1.5A

- Frequency : 50/60 Hz

- Main Control : Power Switch (ON/OFF Control Button)

- Remote Interruption : Remote Interlock

- Disable Control : Emergency Stop Button

- DC Power Supply Module : 12V DC, 5A

- Laser Classification : Class IV (4)

- Medium : InGaAsP Semi-conductor diode

- Wavelength : 940nm ± 10nm

- Power Modes : Continuous, Pulse Modulation

- Peak Power : 10W

- Fiber Tip Diameter : 200µm, 300 µm, 400µm

- Pulse Duration : 0.01ms – 20ms

- Pulse Interval : 0.01ms – 20ms

- Pulse Repetition Rate : Up to 20kHz (for reference)

- NOHD : 2.71 meters

- Beam Divergence : 8 –22° per side

- Standard Fiber Cable Length : 5 feet (1.5 meters)

Additional information

Packaging

Available options :

1 Main Unit

Comes with:

- Footswitch

- Remote Interlock cable

- Surgical Handpiece



Dimension :

5.7 in (W) x 4.4 in (H) x 6.5 in (L)
(14.5 cm x 11.2 cm x 16.5 cm)



Weight :

2.5lb (1kg)
