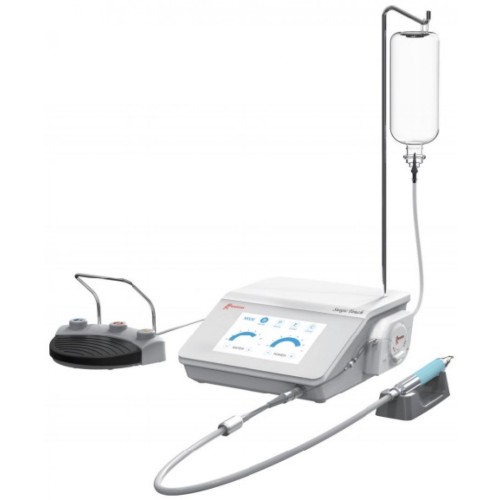

Description

Minimally invasive tooth extraction, Intralift, Sinus Lift, Alveoloplasty, Apical cyst extraction, Crown Extension, Crest splitting, etc.



• Micron Cutting

- The vibration amplitude of tip is between 20-100vm.

- The minimum surgical incision is 3.5mm long, 0.5mm wide, which will help with small operating area and fast postoperative recovery.



• Selective Cutting With No Injury to Soft Tissue

- For soft tissues (neural, blood vessels and mucous membranes, etc.), there is no cutting effect, which can   protect the vascular nerve of the operation area to a large extent, greatly reducing the risk of injuring soft   tissues (neural, vascular, mucosal, etc.).



• Cold Cutting Mode

- Ultrasonic technology produces very little heat while cutting. And iced water can quickly cool the tip and ensure the temperature below 38 ° C.

- At the same time, the water spray flushes the wound during operation, bringing no bleeding and enabling clear vision of operation area, which makes it easy to operate.



• Multi-function Foot Pedal

 Equip device with multi-function foot pedal, which makes it easy to control water flow, working mode, and power, simplifying operation procedures and realizing efficient operation.

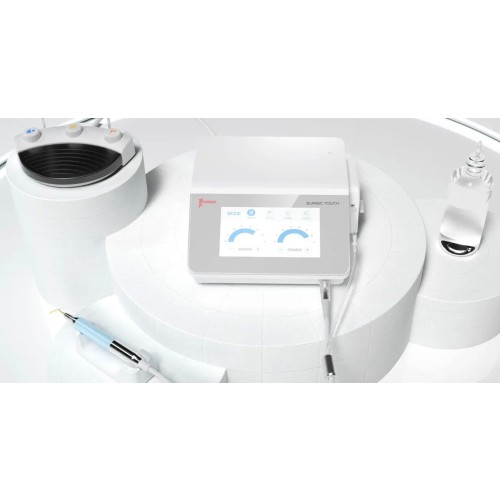

• 7-Inch Touching Screen

 Abandoning the previous button operation settings, innovatively adopt 7-inch screen. While clearly displaying information, operate directly by tapping the screen.

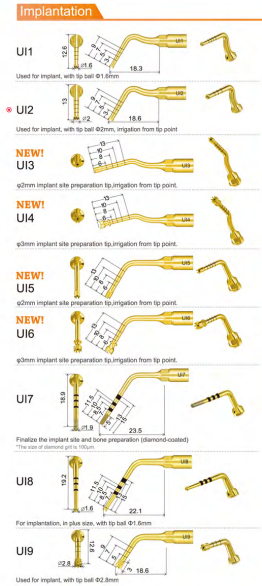

• Tips Kit

 Specially used for tooth extraction, crest splitting, and retropreparation. Adopt gold plating which is wear-resistant and practical with long time of endurance.













• Four Different Treatment Modes:

1- Cutting Mode

2- Periodontal Mode

3- Endodontic Mode:

4- Cleaning Mode:

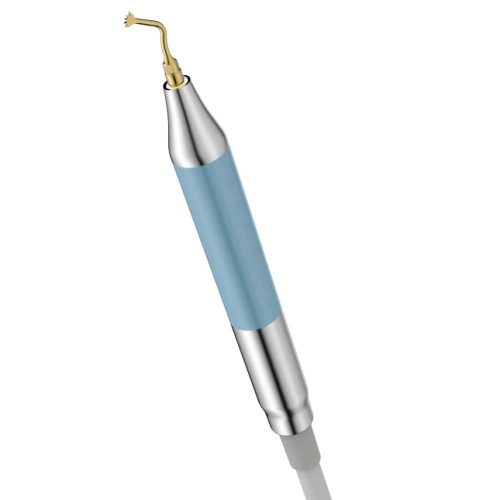

• Handpiece Features

- High-performance Handpiece

- Optimized handpiece with stronger sealing technology.

- High temperature cooking disinfection causes no loss of performance.

- High-brightness LED brings clearer operating vision.

- Bringing doctor better clinical application experience.



•Technical Specifiactions

- Dimension:276mm×267mm×110mm

- Intermittent running device : Intermittent running with 10s pause after 60s operation

- Water flow:25~110ml/m

- Mains voltage:100-240V~ 50Hz/60Hz 150VA

- Working frequency:24-36KHZ

- Weight:2.8KG

- Warranty:5 years

Additional information

Packaging Type

Main Unit

Packaging

Contents:

• Main Unit:

 - 1 x Handpiece

- 1 x Torque Wrench

- 7 x Tips

- 3 x Tube for Peristalic pump

- 1 x Foot Pedal

- 1 x Disinfection Kit

• Basic Kit

• Sinus lift Kit

• Osteotomy Kit

• Extraction Kit

• Periodontal Kit

• Retro Surgical Kit

• Implant Prep Kit
