Description

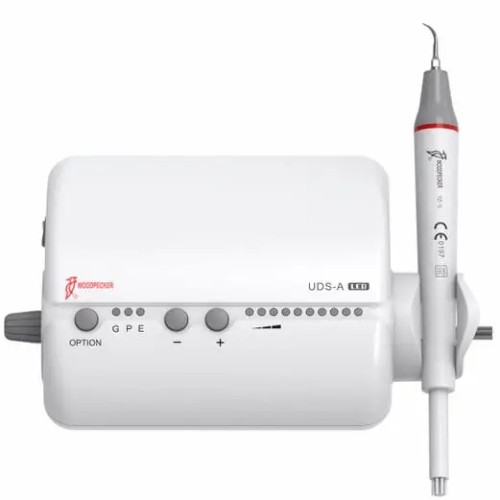

UDS-A LED
• Optical handpiece, more convenient for clinical operation.
• Automatic frequency tracking ensures that the machine always works on the best frequency and more steadily.
• The handpiece is detachable and can be autoclaved to the high temperature of 135 and the pressure of 0.22MPa.
• Digitally controlled, easy operation and more efficient for scaling.
- Detachable handpiece with light
• Shell of the handpiece is made of special imported plastic from America.
• Without cracking or deformation under the pressure.
• Detachable handpiece with light, better visibility.
Note: This type can match with handpiece without light.
- The main technical specifications:
• Power supply Input: 220 - 240V~ 50Hz/60Hz l50mA
• Main unit input: 24V~ 50Hz/60Hz l.3A
• Output primary tip Vibration excursion: ≤100μm
• Output half-excursion force:<2N
• Output tip vibration frequency: 28kHz±3kHz
• Output power: 3W to 20W
• Main unit fuse:T l.6AL 250V
• Power supply fuse: T 0.5AL 250V
• Water pressure: 0.1bar to 5bar (0.01MPa to 0.5MPa)
• Weight of main unit: 0.64kg
• Weight of power supply: 1 kg
• Main unit volume:196mm×134mm×80mm
