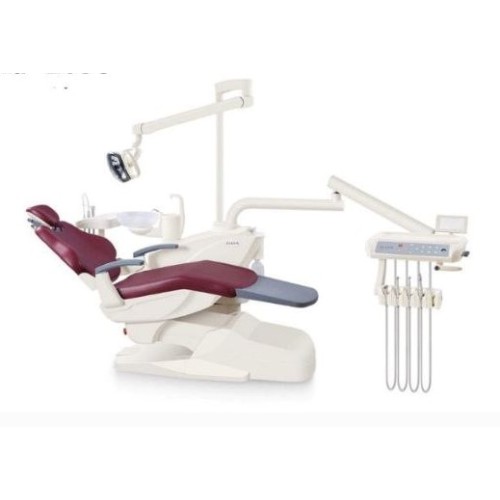

ZA-208C | Dental Chair

Description

Technical parameters
1 , ZA-208C dental comprehensive therapy table

• the minimum chair position is less than 430mm, and the maximum chair position is less than 720mm;
  Chair load 135kg (without treatment machine);
  Chair lifting speed is more than 15mms, and is very stable;
  Cushion inclined angle is less than or equal to 10 degree;
  Back 0 degrees to 70 degrees.
•  the headrest can be adjusted, head extension length of less than 120mm, head tilt angle of 20 degrees, tilt angle of 40 degrees
•  noise less than 45 decibels, the motor rotates with mute DC motor, ensure the safe use of the hospital.
•  the machine has a hand control and foot control four directions chair mode of operation, with the microcomputer control system, a reset and PLC (programmable controller: according to user requirements and to control the circuit with programming logic function).
  1.5, the machine is handsome and conforms to the principles of human function, European style modeling, leather pad with artificial leather, seamless compression molding

2, therapeutic machine

• the whole computer control, plane operation switch panel, convenient for doctors to observe and operate, and also not easy to cause wrong operation
  - chair position control: rise, fall, back, forward, reset and PLC function
  - shadowless lamp control: move the control switch. Shadowless lamp light intensity
  - water heater control: point action, open, close
  - mouthwash feed water control: inching operation, opening and closing, quantitative feed water setting function and automatic feed water supply function
  - move the spittoon flushing control operation, and automatic timing closing function, closing time can be set.
  - low voltage watch lamp control: pull, operate, turn on, turn off

• instrument tray
  Configuration: the use of two sets of four hole standard high-speed mobile phone.
  Configuration: using a four hole standard (including bending straight, low-speed mobile phone mobile phone).
  Configuration: a three gun (cold). (the gun head and the shell can be separated quickly, high temperature sterilization).
  Configuration easy cleaning instrument plate and a set of 24V viewer.
  Water regulating valve is located in the instrument right, bring convenience for doctors to work in the process of.

• the assistant side
  - a strong suction, a weak suction
  - saliva suction tube can easily remove cleaning and disinfection.
  - is equipped with a three gun (hot). (spray gun and shell can be separated quickly and can be sterilized at high temperature)

• oral cold light
  Dental operation light can be divided two files, debugging, and low than 15000Lx, high-grade than 20000Lx, at a distance of 700mm lighting in the area of temperature rise of less than 8 degrees Celsius, the temperature of 5000 DEG kelvin.

• toughened glass spittoon
  easy to clean, easy to disinfect, easy to disassemble
  The water velocity is larger than 4.5L/min. 2.5.2 spittoon

•  doctor seat
  The doctor put a chair configuration of adjustable, adjustable height, mobile and flexible.
  Dr chair lift range 130mm.

 doctor chair maximum load is 135kg.
